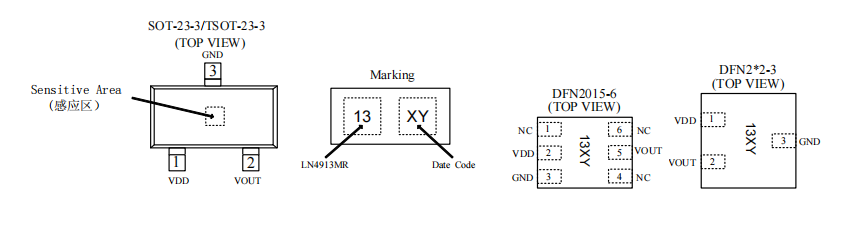

LN4913
CMOS 無極性高靈敏度微功耗霍爾開關
■ 產品概述
LN4913 是一款基于混合信號 CMOS 技術的無極性霍
爾開關，這款 IC 采用了先進的斬波穩定技術，因而能夠提
供準確而穩定的磁開關點。
在電路設計上，LN4913 提供了一個內嵌的受控時鐘機
制來為霍爾器件和模擬信號處理電路提供時鐘源，同時這個
受控時鐘機制可以發出控制信號使得消耗電流較大的電路周
期性的進入“休眠”模式；同樣通過這個機制，芯片被周期
性的“喚醒”并且根據預定好的磁場強度閾值檢測外界穿過
霍爾器件磁場強度的大小。如果磁通密度高于“操作點”閾
值或者低于“釋放點”閾值，則開漏輸出晶體管被驅動并鎖
存成與之相對應的狀態。而在“休眠”周期中，輸出晶體管
被鎖定在其先前的狀態下。在電池供電應用中，這種設計對
于延長工作壽命提供了最好支持。
LN4913 的輸出晶體管在面向封裝標示一面存在一定強
南極或北極磁場時被鎖定在開狀態，而在無磁場時鎖定在關
狀態。
■ 產品概述
LN4913 是一款基于混合信號 CMOS 技術的無極性霍 爾開關，這款 IC 采用了先進的斬波穩定技術，因而能夠提 供準確而穩定的磁開關點。 在電路設計上，LN4913 提供了一個內嵌的受控時鐘機 制來為霍爾器件和模擬信號處理電路提供時鐘源，同時這個 受控時鐘機制可以發出控制信號使得消耗電流較大的電路周 期性的進入“休眠”模式；同樣通過這個機制，芯片被周期 性的“喚醒”并且根據預定好的磁場強度閾值檢測外界穿過 霍爾器件磁場強度的大小。如果磁通密度高于“操作點”閾 值或者低于“釋放點”閾值，則開漏輸出晶體管被驅動并鎖 存成與之相對應的狀態。而在“休眠”周期中，輸出晶體管 被鎖定在其先前的狀態下。在電池供電應用中，這種設計對 于延長工作壽命提供了最好支持。 LN4913 的輸出晶體管在面向封裝標示一面存在一定強 南極或北極磁場時被鎖定在開狀態，而在無磁場時鎖定在關 狀態。

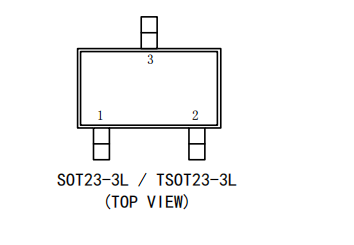

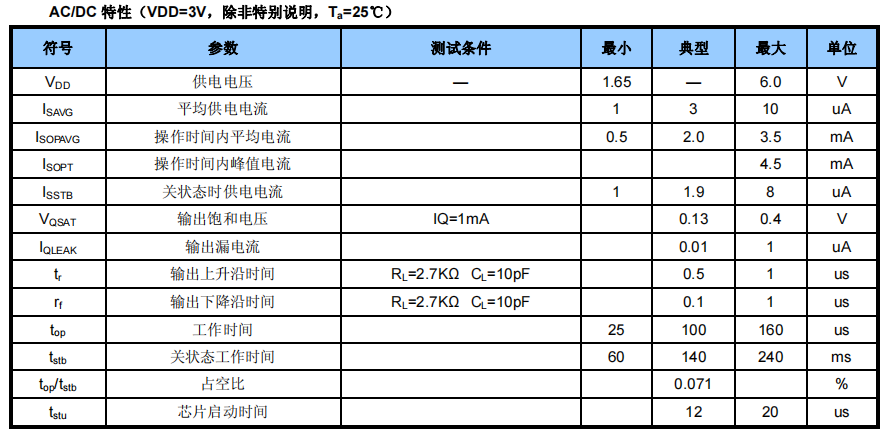

■ 額定工作參數
工作溫度范圍 TMIN ≤ TA ≤ TMAX ?40°C ≤ TA ≤ 85°C 工作電壓范圍 1.65V ≤ VDD ≤ 6.0V
■ 產品特點
? 1.65V — 5.5V 電池應用
? 磁開關點的高靈敏度高穩定性
? 抗機械應力強
? 數字輸出信號
? 無極性的開關
■ 用途
? 移動電話
? 筆記本電腦
? 便攜電子設備等
相關推薦
recommends
-
LN4917
LN4917 is with proprietary Hall effect plate and dual CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When north-pole of sufficient strength on chip or south-pole of sufficient strength under chip, the LN4917 will turn on the NOUT output. When south-pole of sufficient strength on chip or north-pole of sufficient strength under chip, the LN4917 will turn on the SOUT output. While the magnetic flux density (B) is larger than operate point BOP(s), the SOUT will be turned on (low), the output is held until B is lower than release point BRP(s), then turned off (high). While the magnetic flux density (B) is larger than operate point BOP (n), the NOUT will be turned on (low), the output is held until B is lower than release point BRP (n), then turned off (high). -
LN4916
LN4916 is with proprietary Hall effect plate and single CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When south-pole of sufficient strength on chip or north-pole of sufficient strength under chip, the LN4916 will turn on the SOUT output. While the magnetic flux density (B) is larger than operate point BOP(s), the SOUT will be turned on (low), the output is held until B is lower than release point BRP(s), then turned off (high). -
LN4919
LN4919 is with proprietary Hall effect plate and single CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When north-pole of sufficient strength on chip or south-pole of sufficient strength under chip, the LN4919 will turn on the OUT output. When south-pole of sufficient strength on chip or north-pole of sufficient strength under chip, the LN4919 will turn on the OUT output. LN4919 series have above two kinds Hall effect output, please select appropriate model for different application. While the magnetic flux density (B) is larger than operate point BOP, the OUT will be turned on (low), the output is held until B is lower than release point BRP, then turned off (high). -
LN4918
LN4918 is with proprietary Hall effect plate and single CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When north-pole of sufficient strength on chip or south-pole of sufficient strength under chip, the LN4918 will turn on the OUT output. When south-pole of sufficient strength on chip or north-pole of sufficient strength under chip, the LN4918 will turn on the OUT output. LN4918 series have above two kinds Hall effect output, please select appropriate model for different application. While the magnetic flux density (B) is larger than operate point BOP, the OUT will be turned on (low), the output is held until B is lower than release point BRP, then turned off (high). -

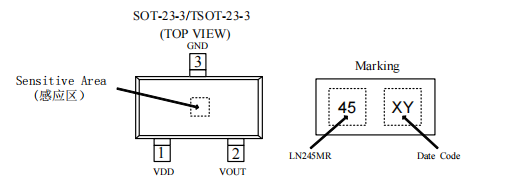

LN245
