LN245
■ 產品概述
LN245 是一款基于混合信號 CMOS 技術的無極性霍 爾開關,這款 IC 采用了先進的斬波穩定技術,因而能夠提 供準確而穩定的磁開關點。 在電路設計上,LN245 提供了一個內嵌的受控時鐘機制 來為霍爾器件和模擬信號處理電路提供時鐘源,同時這個受 控時鐘機制可以發出控制信號使得消耗電流較大的電路周期 性的進入“休眠”模式;同樣通過這個機制,芯片被周期性 的“喚醒”并且根據預定好的磁場強度閾值檢測外界穿過霍 爾器件磁場強度的大小。如果磁通密度高于“操作點”閾值 或者低于“釋放點”閾值,則開漏輸出晶體管被驅動并鎖存 成與之相對應的狀態。而在“休眠”周期中,輸出晶體管被 鎖定在其先前的狀態下。 LN245 的輸出晶體管在面向封裝標示一面存在一定強 南極或北極磁場時被鎖定在開狀態,而在無磁場時鎖定在關 狀態。

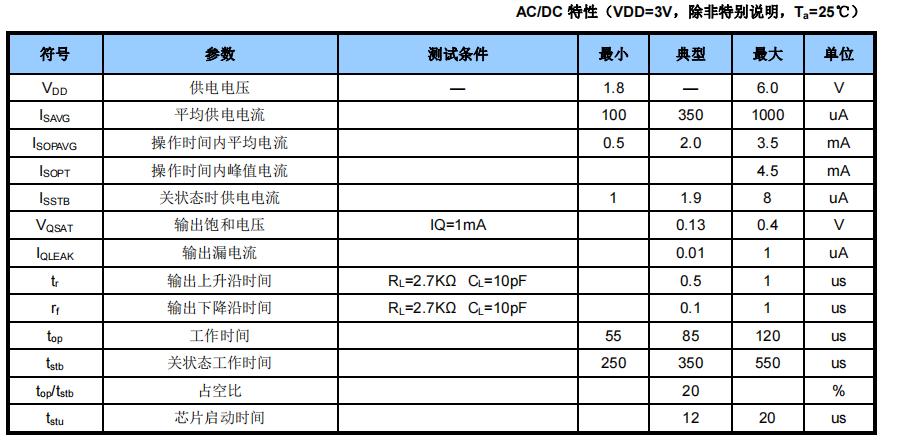

■ 額定工作參數
工作溫度范圍 TMIN ≤ TA ≤ TMAX ?40°C ≤ TA ≤ 85°C 工作電壓范圍 1.8V ≤ VDD ≤ 6.0V
■ 產品特點
? 磁開關點的高靈敏度高穩定性
? 高頻檢測
? 抗機械應力強
? 數字輸出信號
? 無極性的開關
■ 用途
? 移動電話
? 筆記本電腦
? 便攜電子設備等
