LN4915
CMOS 無極性高靈敏度微功耗霍爾開關
LN4915 是一款基于混合信號 CMOS 技術的無極性霍
爾開關,這款 IC 采用了先進的斬波穩定技術,因而能夠提
供準確而穩定的磁開關點。
在電路設計上,LN4915 提供了一個內嵌的受控時鐘機
制來為霍爾器件和模擬信號處理電路提供時鐘源,同時這個
受控時鐘機制可以發出控制信號使得消耗電流較大的電路周
期性的進入“休眠”模式;同樣通過這個機制,芯片被周期
性的“喚醒”并且根據預定好的磁場強度閾值檢測外界穿過
霍爾器件磁場強度的大小。如果磁通密度高于“操作點”閾
值或者低于“釋放點”閾值,則開漏輸出晶體管被驅動并鎖
存成與之相對應的狀態。而在“休眠”周期中,輸出晶體管
被鎖定在其先前的狀態下。在電池供電應用中,這種設計對
于延長工作壽命提供了最好支持。
LN4915 的輸出晶體管在面向封裝標示一面存在一定強
南極或北極磁場時被鎖定在開狀態,而在無磁場時鎖定在關
狀態。
LN4915 比 LN4913 具有更高的磁場感應靈敏度,可實
用于安防系統、感應磁體較小的場合。
■ 產品概述
LN4915 是一款基于混合信號 CMOS 技術的無極性霍 爾開關,這款 IC 采用了先進的斬波穩定技術,因而能夠提 供準確而穩定的磁開關點。 在電路設計上,LN4915 提供了一個內嵌的受控時鐘機 制來為霍爾器件和模擬信號處理電路提供時鐘源,同時這個 受控時鐘機制可以發出控制信號使得消耗電流較大的電路周 期性的進入“休眠”模式;同樣通過這個機制,芯片被周期 性的“喚醒”并且根據預定好的磁場強度閾值檢測外界穿過 霍爾器件磁場強度的大小。如果磁通密度高于“操作點”閾 值或者低于“釋放點”閾值,則開漏輸出晶體管被驅動并鎖 存成與之相對應的狀態。而在“休眠”周期中,輸出晶體管 被鎖定在其先前的狀態下。在電池供電應用中,這種設計對 于延長工作壽命提供了最好支持。 LN4915 的輸出晶體管在面向封裝標示一面存在一定強 南極或北極磁場時被鎖定在開狀態,而在無磁場時鎖定在關 狀態。 LN4915 比 LN4913 具有更高的磁場感應靈敏度,可實 用于安防系統、感應磁體較小的場合。

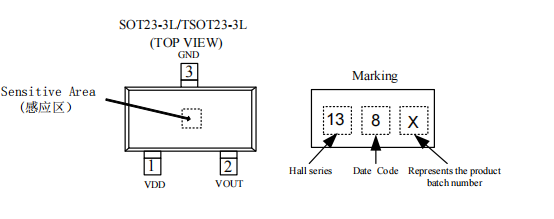

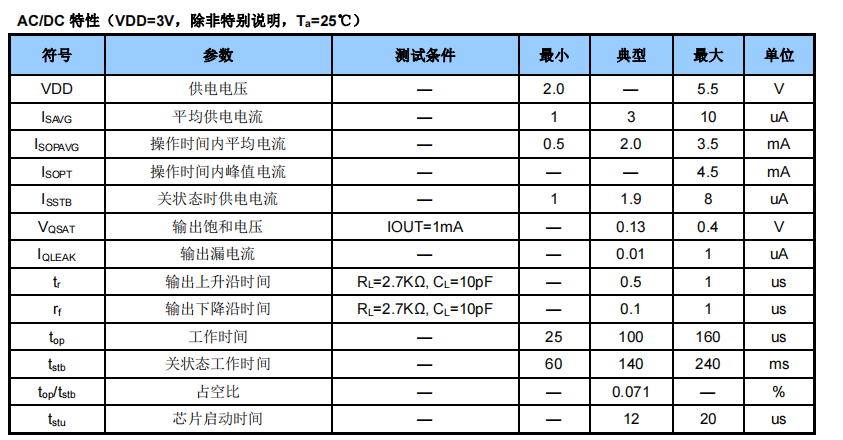

■ 額定工作參數
? 工作溫度范圍 TMIN ≤ TA ≤ TMAX ?40°C ≤ TA ≤ 85°C
? 工作電壓范圍 2.0V ≤ VDD ≤ 6.0V
■ 產品特點
? 2.0V — 5.5V 電池應用
? 磁開關點的高靈敏度高穩定性
? 抗機械應力強
? 數字輸出信號
? 無極性的開關
■ 用途
? 移動電話
? 筆記本電腦
? 便攜電子設備等
