LN6206
低功耗 低壓差 中輸出電流 CMOS 穩壓器
可選擇輸出電壓： 1.2～5.0V
輸出電壓精度高：精度可達±1.0%或±2.0%
低靜態功耗：2μA(TYP.)
輸入輸出壓差低： 典型值 160 mV (輸出為 3.0V 的產品, IOUT=50mA 時)
輸出電流大：可輸出 250mA（VIN≥VOUT+1v）
輸出電壓： 1.2～5.0V
輸入輸出壓差低： 典型值 160 mV
輸出電流大：可輸出 250mA
輸入輸出壓差低： 典型值 160 mV
輸出電流大：可輸出 250mA
■ 產品概述
LN6206 系列是使用 CMOS 技術開發的低壓差，高精度 輸出電壓，低消耗電流正電壓型電壓穩壓器。
由于內置有低 通態電阻晶體管，因而壓差低，能夠獲得較大的輸出電流。 為了使負載電流不超過輸
出晶體管的電流容量，內置了過載 電流保護電路、短路保護電路。
因采用 SOT89-3L，SOT23-3L，SOT23-3B 等小型封裝， 故可高密度安裝。
■ 用途
? 電池供電設備
? 基準電壓源
? 相機、視頻相機
? 移動電話
? 通信工具

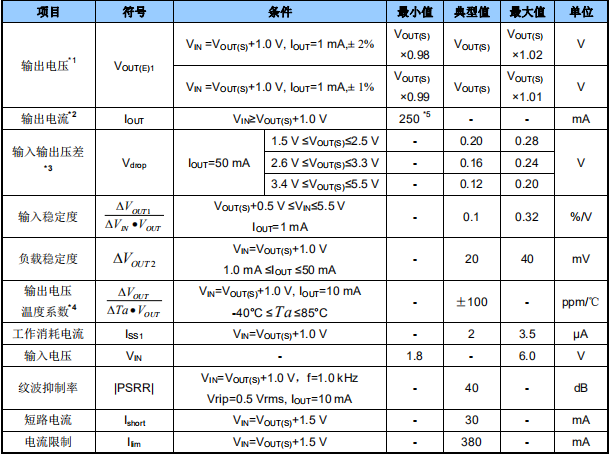

■ 產品特點
? 可選擇輸出電壓：可以在 1.2～5.0V 的范圍內選擇,并 以 0.1 V 為單位進級
? 輸出電壓精度高：精度可達±1.0%或±2.0%
? 低靜態功耗：2μA(TYP.)
? 輸入輸出壓差低： 典型值 160 mV (輸出為 3.0V 的產 品, IOUT=50mA 時)
? 輸出電流大：可輸出 250mA（VIN≥VOUT+1v）
? 內置保護：內置過流保護和短路保護電路
? 采用小型封裝： SOT89-3L ，SOT23-3L，SOT23-3B
■ 封裝
? SOT89-3L
? SOT23-3L
? SOT23-3B
