JX6206
高紋波抑制率、低功耗、低壓差
JX6206系列是具有高紋波抑制率、低功耗、低壓
差，具有過流和短路保護的CMOS降壓型電壓穩壓
器。這些器件具有很低的靜態偏置電流（2.0μA
Typ.），它們能在輸入、輸出電壓差極小的情況下提
供250mA的輸出電流，并且仍能保持良好的調整率。
由于輸入輸出間的電壓差很小和靜態偏置電流很小，
這些器件特別適用于希望延長電池壽命的電池供電類
產品，如計算機、消費類產品和工業設備等。
輸出電壓可以通過金屬熔絲技術在內部設定。它
可以在1.2V到5.0V的范圍內以100mV的增量進行選
擇。封裝形式具有SOT-23、SOT23-3L和SOT-89可供
選擇
-
產品描述
JX6206系列是具有高紋波抑制率、低功耗、低壓 差，具有過流和短路保護的CMOS降壓型電壓穩壓 器。這些器件具有很低的靜態偏置電流（2.0μA Typ.），它們能在輸入、輸出電壓差極小的情況下提 供250mA的輸出電流，并且仍能保持良好的調整率。 由于輸入輸出間的電壓差很小和靜態偏置電流很小， 這些器件特別適用于希望延長電池壽命的電池供電類 產品，如計算機、消費類產品和工業設備等。 輸出電壓可以通過金屬熔絲技術在內部設定。它 可以在1.2V到5.0V的范圍內以100mV的增量進行選 擇。封裝形式具有SOT-23、SOT23-3L和SOT-89可供 選擇。

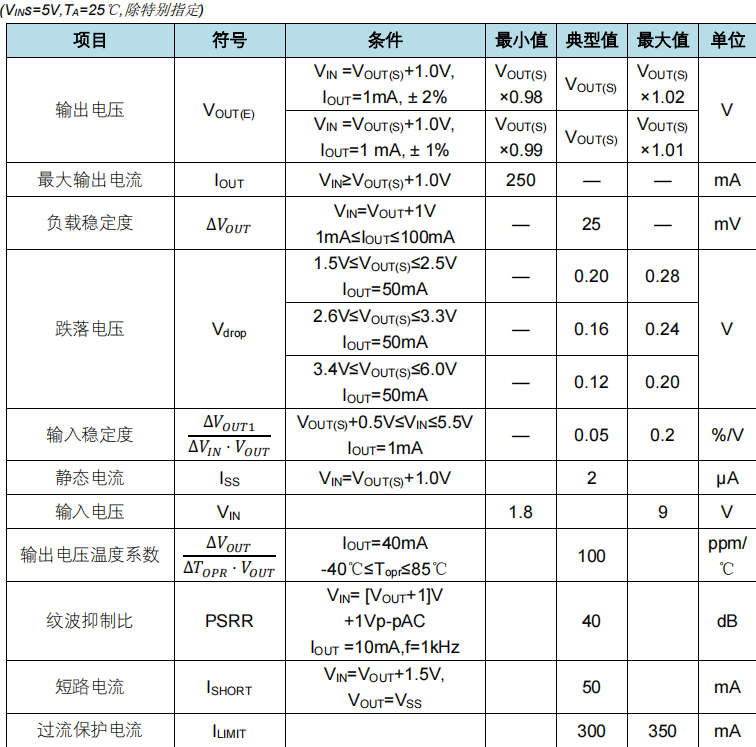

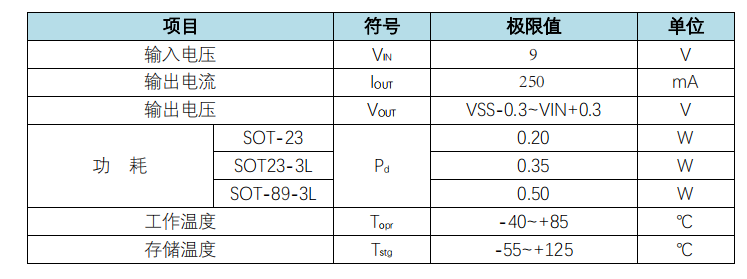

產品特點
?最大輸出電流：250mA（典型輸出電壓3.3V）
? 壓差電壓：160mV@100mA (典型輸出電壓3.3V)
? 最大工作電壓：8V
? 輸出電壓范圍：1.2V to 5.0V（可100mV步進選 擇）
? 高精度：1%、2%可選
? 極低的靜態工作電流：2μ A (典型值)
? 內置過流和短路保護電路 ? 工作溫度范圍：-40℃~ 85℃
? 超小型封裝：SOT-23，SOT23-3L，SOT89-3L
應用領域
? 電池供電系統
? 無繩電話設備
? 無線控制系統
? 便攜/手掌式計算機
? 便攜式消費類設備
? 便攜式儀器
? 汽車電子設備
? 電壓基準源
